ARC-FLASH RELAY

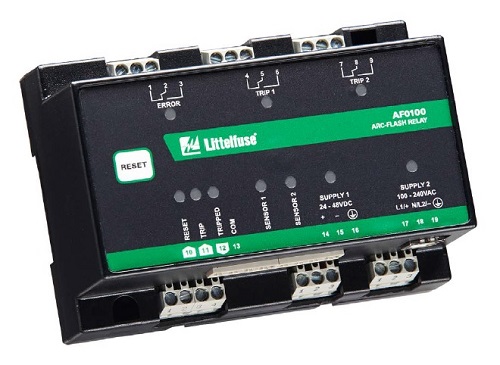

The AF0100 Series arc-flash relay is a cost-effective solution that reduces arc-fault damage by detecting the light from an arc flash and rapidly tripping. Two remote light sensors can be connected to one relay and multiple AF0100 and/or AF0500 relays can be connected to monitor additional sensors, providing complete coverage for a wide range of applications. The compact, DIN-rail or surface-mountable body makes this an ideal solution for equipment manufacturers.

Specifications:
Input Voltage

AF0100-00: 100-240 VAC/VDC, 24-48 VDC
AF0100-10: 24-48 VDC
Dimensions: H 90 mm (3.5”); W 128 mm (5.0”); D 60 mm (2.4”)
Trip, Error Relays: Form C, 250 VAC/30 VDC, 6 A resistive
Trip Time: 5 ms (typical)
Sensitivity: 10-25 klux programmable
Mounting: Surface, DIN rail
Operating Temperature: -40°C to +70°C (-40°F to 158°F)
Shipping Weight: 1.0 kg (2.2 lb)
Certifications: UL Listed (UL 508), CE, RCM, FCC
Warranty: 5 years
