Brands

Leco Sales represents Logstrup, the internationally known Danish switchboard systems manufacturer and has done so for over 30 years.

Since 1957, Logstrup have been a leading and innovative force in the panel building industry. Logstrup have developed a complete range of Type Tested Switchgear and Control gear systems to cover the whole spectrum of Low Voltage applications

The emphasis throughout their organisation is on quality and safety. Products have been rigorously tested by independent test laboratories to ensure compliance to IEC and other international standards

Their products are thoroughly type tested according to specifications and requirements in IEC 60439-1-1999-09 for Type Tested Switchgear Assemblies (TTA). It conforms to all the regulations of major markets in Europe, Asia, Australia, and America.

The standard paint finish and internal components can withstand most climatic variations.

Modular Enclosure System

The Logstrup enclosure system has complete modularity in all 3 axes with a base module of 190mm. This provides the most flexible solution possible. Width, height and depth as well as sizing and placement of any sub-sections are infinitely variable. Many space restrictions can be overcome by making angled or back to back arrangements.
Since all components are standard stock items, design changes or other modifications can easily be catered for during the assembly phase or onsite

Functional Units

Functional units are classified by their level of compartmentation and type of electrical connection. An extensive range of standard parts offers complete freedom in design

Different types of functional units can be mixed within the same assembly or section, in order to efficiently meet requirements regarding continuity of supply, service conditions or budgetary constraints.

Due to the complete modularity of the system, the physical dimensions of the functional units can be varied in all 3 axes.
This allows complete optimisation of design with respect to the overall dimensions of the assembly, heat dissipation, service and maintenance.

Electrical equipment from all manufacturers may be fitted in accordance with the customers’ preferences

To secure the overall safety level of the assembly all components are manufactured from steel or high grade polymer to resist the spread of fire.

Omega System – Modular Enclosure System

The Omega Switchgear & Controlgear System incorporates fixed, removable, withdrawable and inline technology for switchboards and motor control centres

You can visit Logstrups web site at www.logstrup.com

Telergon is a leading manufacturer of load break switches and its associate accessories based in Spain.

Telergon has been a mainstay of our business for some years now. The product is robust, reliable and competitive. Available in a wide range of amperages and pole configurations. The range includes load break, auto and manual changeover, bypass and photovoltaic.

Accessories include:

• Direct mounting handle
• External mounting handle
• Terminal shrouds
• Terminal protection
• Auxiliary contacts
• Shaft extensions
• Safety key lock device

The Telergon range of changeover switches is characterised by a compact design with a single output and the possibility to be motorised with a modular system. The CC (Compact Changeover) is the same unit used for manual transfer. Motorised units (UM) give quick and easy coupling to the compact change over allowing remote operation through digital inputs/outputs via series protocol MODBUS.

Telergon switches can practically handle any situation in electrical circuits without risk to the operator. Telergon switches have on load switching capability for both AC and DC (Capacitive & Inductive) and can handle loads up to 1000V with Rated breaking current up to 8 times the rated operational current. High making and withstand capability up to 100KA short circuit, uninterrupted duties in extreme tropical and Arctic conditions, protection against accidental over Voltage, reliable isolation and contact position indication throughout the life-time of the switch, even after short-circuits.

We also have a range of automatic transfer switches.

An Automatic Transfer Switch (ATS) is a device that automatically switches the power from its primary source to a backup source during a power outage or interruption.  It monitors the power source, detecting interruptions or fluctuations and switches to the backup source without manual intervention. Thus, ensuring continuous power for critical systems.

The ATS constantly monitors the status of the primary power source. When it detects an interruption or anomaly (such as undervoltage, overvoltage, or phase loss), it sends a signal to the backup generator to start. Once the generator reaches optimal operating conditions, the switch automatically transfers the load to the secondary power source. When the primary source is restored and stable, the ATS performs the reverse transfer, switching the load back to the grid and shutting off the generator.

In the automatic and programmable configuration, it allows monitoring and network switching between two power sources, according to the settings on the display or via communication.

The Telergon ATS range includes two series (C1 and C2) of remote and automatic change over switches in3P and P+N versions from 63A to 630A.

You can visit the Telergon website here  https://telergon.gorlan.com/

Leco Sales is proud to be partnering New Elfin as their New Zealand Agent. We believe we have a first class product from a first class company. If you want above average performance at a competitive price then give New Elfin a try and see for yourself why so many people are staying with this product.

You can visit New Elfin web site at newelfin.com

Leco Sales is proud to be partnering Fuseco as their New Zealand Agent. We believe we have a first class product from a first class company. If you want above average performance at a competitive price then give Fuseco a try and see for yourself why so many people are staying with this product.

Fuses protect components and equipment from costly damage caused by over-currents and isolate sub-systems from the main system once a fault has occurred. We have a range of fuses and fuse holders to match and can source your needs.

Arc Flash Detection

A quick response to an arc fault is essential for safety. Limit arc-flash damage by detecting the light from an arc flash and tripping rapidly. Arc flash detection products from Littelfuse help make this possible.

You can visit Fuseco web site at www.fuseco.com.au

Tofco CPP Limited is a family business based in the North East of England, just a few miles from Newcastle upon Tyne and its International Airport.

With over 40 years of industry experience Tofco CPP Ltd has developed into one of the UK’s leading manufacturer and supplier of Street Lighting Cut-Outs, Isolators.

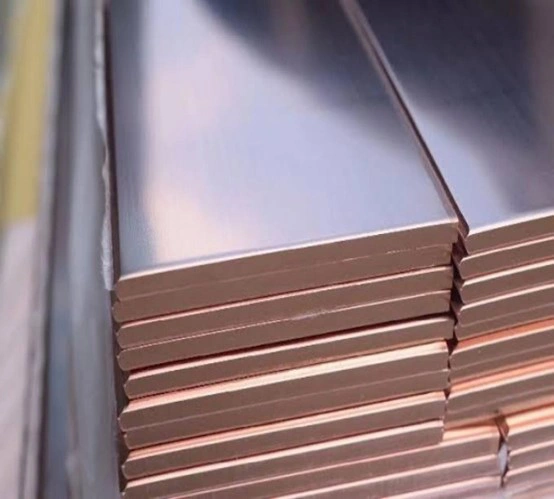

We carry an extensive range of Oxygen Free Tinned Copper bar in 4-meter lengths, ranging from 20mm x 5mm to 150mm x 12mm, ideal for Busbars and other industrial uses.

Sourced from leading mills our copper is accurate in size and consistent in quality.

Characteristics

• High electrical conductivity (min. 100 IACS)
• Good forming properties
• Bendability to a minimum of 90°
• Tight dimensional tolerances and
• Excellent surface quality

Connectwell is the leading manufacturer of Terminal Blocks in India. In addition to Din Rail and PCB Terminal Blocks, Connectwell now offers a large range of products including Interface Modules, Professional Tools and Switching Power Supplies.

Connectwell works with quality systems which adhere to ISO 9001:2015 standard and all processes and systems are mapped in SAP R/3 ERP system. Product approvals and certifications like UL, CSA, VDE, ATEX and CE verify the quality levels that can be expected of Connectwell. More than three decades of incessant dedication and commitment have made Connectwell a synonym for THE RIGHT CONNECTION.

www.connectwell.com

We stock a range of transformers and power and energy meters made by Rishabh. Crafted with precision and reliability, these products ensure top performance and durability. Experience excellence with every measurement.

Rishabh Insulation Tester Rish Insu 5Dt is a 5KV Digital Insulation Tester with selectable test voltage up to 5KV and Insulation Resistance measurement up to 2 TΩ. Ideal for insulation testing of cables, motors and transformers. It comes with a facility to measure PI, DAR, Step Voltage, Ramp test.

It has the following features

• Backlit Facility
• Selectable SC current i.e 1.2mA and 3mA
• User selectable digital filters
• Noise Rejection 3 mA
• Operates on rechargeable Li-ion battery and Mains as well
• Bluetooth or USB connectivity for data logging
• Touch screen TFT colour Display
• Audio Read-out
• Selectable Test voltages in step of 25V
• Measurement of DC and AC voltages from 20V ~ 600V
• Three programmable timers
• Insulation leakage current measurement

https://rishabh.co.in/product

We stock a range of IP65 outdoor enclosures for use by the electrical industry.

The cabinets come in the following size variations.

• 250,300,400,500,600,800 and 1000 cm wide
• 200,250,300,400,500,600,800 and 1000 cm high
• 150,200,250 and 300cm deep

Some common cabinets are in stock, and others can be sourced on an indent with a longer lead time.

The IP65 Metal Enclosure Box is made from high-quality cold rolled steel with a thickness of 1.5mm, ensuring a robust and long-lasting structure that can withstand harsh environments. This box has achieved an IP66 protection level, making it suitable for use in areas with high levels of dust and moisture, providing peace of mind for users.

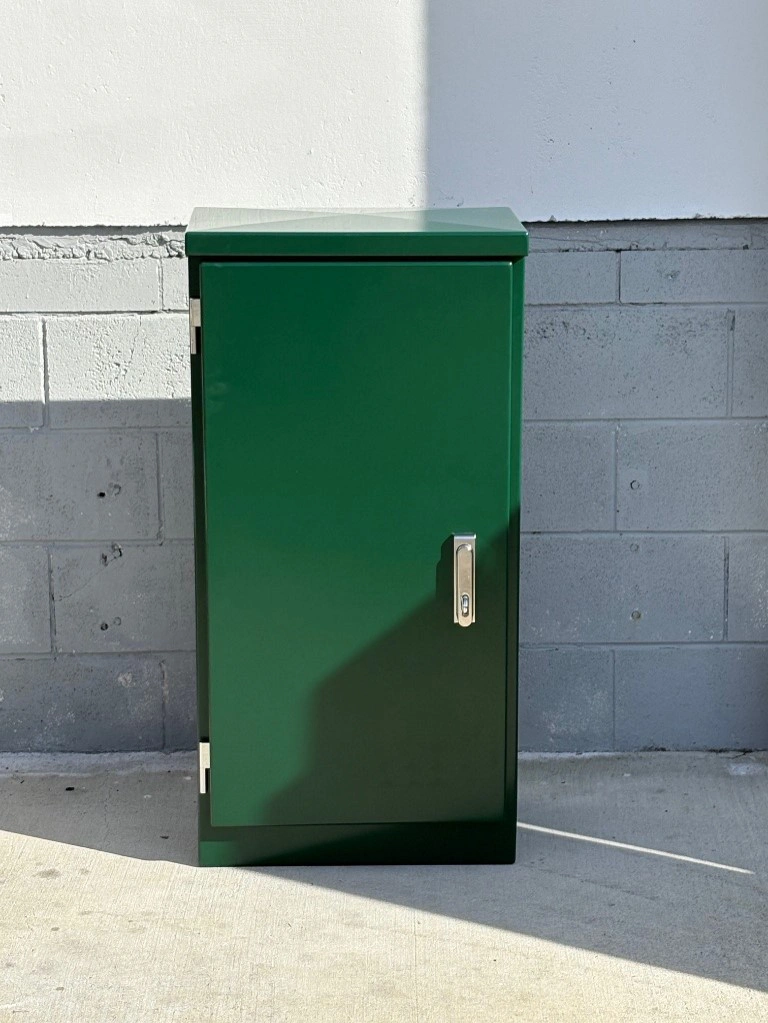

We carry a range of five standard pillar boxes with a padlockable swing handles and three-way locking bar.

The pillar boxes are IP56 rated, made of 2.5 mm Aluminum, external and internal powder coated in Hawthorn Green and with 3-way locking.

The standard sizes are
